2000KG DIY Off Road Trailer Kit. Outback Springs, 12" Electric Brakes Solid Axle

DIY OFF ROAD TRAILER KIT
OUTBACK OFF ROAD SPRINGS
2000KG RATED

STUD PATTERNS AVAILABLE
6 STUD LANDCRUISER (6/139.7 PCD, 1/2" STUDS AND NUTS)
5 STUD LANDCRUISER (5/150 PCD, 9/16" STUDS AND NUTS)



AXLE LENGTHS AVAILABLE
PLEASE NOTE: Minimum clearance from hub face to chassis per side: 155mm
Hub face to back of electric backing plate per side: 155mm
1700MM TIP TO TIP (hub face to hub face 1525mm)
1750MM TIP TO TIP (hub face to hub face 1575mm)
1800MM TIP TO TIP (hub face to hub face 1625mm)
1850MM TIP TO TIP (hub face to hub face 1675mm)
1900MM TIP TO TIP (hub face to hub face 1725mm)
1950MM TIP TO TIP (hub face to hub face 1775mm)
2000MM TIP TO TIP (hub face to hub face 1825mm)
2050MM TIP TO TIP (hub face to hub face 1875mm)
2100MM TIP TO TIP (hub face to hub face 1925mm)
2150MM TIP TO TIP (hub face to hub face 1975mm)
2200MM TIP TO TIP (hub face to hub face 2025mm)
2250MM TIP TO TIP (hub face to hub face 2075mm)
2300MM TIP TO TIP (hub face to hub face 2125mm)
2350MM TIP TO TIP (hub face to hub face 2175mm)
2385MM TIP TO TIP (hub face to hub face 2210mm)
2445MM TIP TO TIP (hub face to hub face 2270mm)
2475MM TIP TO TIP (hub face to hub face 2300mm)
CUSTOM AXLE LENGTH UP TO 2500MM TIP TO TIP +$50 PER KIT
Custom Axle lengths will need to be manufactured which will take approx 5 extra business days for dispatch on top of the current dispatch times

IN THIS KIT
1X 50MM SQUARE SOLID 2 TONNE ELECTRIC BRAKED AXLE

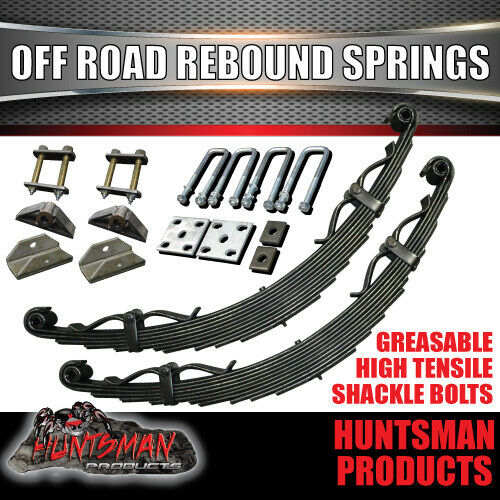

2X 9 LEAF 60MMX7MM OFF ROAD BLACK SPRINGS WITH REBOUND STRAPS. RATED 2000KG RATED (springs are shot peened for extra strength)
2X FRONT HEAVY DUTY HANGERS
2X REAR EYE HANGERS WITH EXTRA STRENGTH WELD IN BRACKETS
2X OFF ROAD FISH PLATES
4X OFF ROAD 50MM X 170MM 5/8"HIGH TENSILE U BOLTS WITH NUTS AND WASHERS
2X HIGH TENSILE REAR DOUBLE SHACKLE BOLT SETUPS (WITH GREASE NIPPLES)
2X HIGH TENSILE FRONT SHACKLE PINS WITH GREASE NIPPLES
2X AXLE PADS
1X LEFT HAND 12" BRAKE BACKING PLATE WITH HAND BRAKE LEVER
1X RIGHT HAND 12" BRAKE BACKING PLATE WITH HAND BRAKE LEVER
2X 12" HUB DRUMS WITH CUPS ALREADY PRESSED IN (AVAILABLE IN 6 AND 5 STUD LANDCRUISER)
2X 2 TONNE BEARING SETS INCLUDING DUST SEALS AND DUST CAPS

ON PURCHASING PLEASE PROVIDE YOUR AXLE LENGTH AND STUD PATTERN

Axle In this kit will come assembled saving you much time and headache



EXTRAS AVAILABLE
2" OR 4" DROP AXLES $295
JAPAENESE KOYO BEARINGS $90 (CLICK ON LINK BELOW)



BEARING OPTIONS
UPGRADE TO JAPANESE BEARINGS $90.0 (CLICK ON LINK BELOW)

 "UPGRADE TO JAPANESE MANUFACTURED BEARINGS BY CLICKING HERE"



PLEASE SEE OFF ROAD SPRING SET UP BELOW

Long Part of spring to the front, move rear hanger 25mm towards the rear,
Centre to centre of the hangers needs to be 25mm greater than centre to centre of the springs


SHOT PEENING
Shot peening is a cold working process used to produce a compressive residual stress layer and modify mechanical properties of metals and composites. It entails impacting a surface with shot with force sufficient to create plastic deformation. Shot peening is often called for in aircraft repairs to relieve tensile stresses built up in the grinding process and replace them with beneficial compressive stresses
