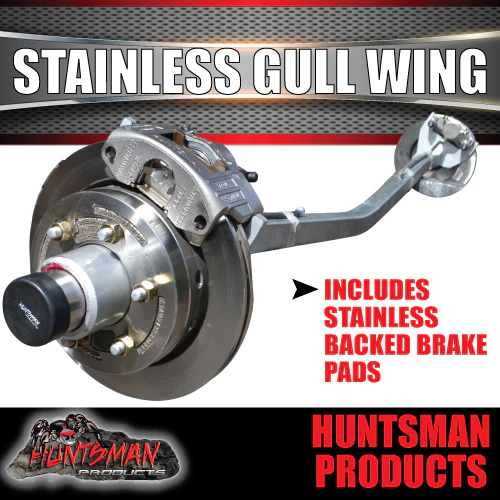

2000Kg Galvanised Stainless Calipers & Hydraulic Disc Gullwing Boat Trailer Axle. L/C PATTERN

GALVANISED 2000kg HYDRAULIC DISC BRAKED GULLWING AXLE
MINIMUM LENGTH 1855MM HUB FACE TO HUB FACE
MAXIMUM LENGTH 2785MM HUB FACE TO HUB FACE

COMPLETE WITH 12" HYDRAULIC DISC BRAKES WITH STAINLESS STEEL CALIPERS, STAINLESS STEEL DISCS, DACROMET LAZY HUBS

Stud Patterns Available
6 STUD LANDCRUISER (6/139.7 PCD, 1/2" STUDS AND NUTS)
5 STUD LANDCRUISER (5/150 PCD, 9/16" STUDS AND NUTS)
RATED: 2000KG

WHAT YOU RECEIVE
GALVANISED GULLWING AXLE
DACROMET LAZY HUBS
JAPANESE KOYO BEARINGS STANDARD
STAINLESS STEEL HUNTSMAN PRODUCTS CALIPERS WITH STAINLESS STEEL BACKING PLATES
STAINLESS STEEL 12" VENTILATED DISCS
63MM STAINLESS STEEL BEARING BUDDYS
FULLY ASSEMBLED

ADVANTAGES OF GULLWING AXLES
LOWER YOUR CENTRE OF BOAT POSITION BY 103MM
CENTRE OF GRAVITY BECOMES SIGNIFICANTLY LOWER
ROLLERS ARE LOWERED WHEN ROLLER BRACKET ARE BOLTED TO THE V'S
HOLLOW GALVANISED TUBE LOWERS OVERALL WEIGHT OF TRAILER

IF YOU HAVE A HUB FACE TO HUB FACE MEASUREMENT ADD 175MM AND THAT WILL GIVE YOUR OVER ALL TIP TO TIP LENGTH MEASUREMENT

Please note
These 50mm x 5mm Tube is hot dipped galvanised. They are then cut down to the required length and specially machined stub axles are inserted and welded in. Cold galvanise is then applied to the welded stub ends.

AXLE COMES COMPLETELY ASSEMBLED AS PICTURED
