304 Stainless Steel 125Kg 800mm Locking Drawer Slides runners 32" full extension

X1 Pair Stainless Steel Lock in/out Drawer Slides
Suits 1 Drawer
125kg rating (when fully extended the weight ratio changes)

CLOSED LENGTH: 800MM
EXTENDED LENGTH: 1600MM
STEEL FINISH

Full extension design
304 Stainless steel
Locking design

Very Reliable and Hard Wearing for all conditions.
These Draw Slides are great for any environment whether it be for marine, work or leisure.
They are able to be used in a number of application from camper trailers to vans and everything in between.
One of the main features of these Draw Slides is that it is a Lock In & Lock Out, which means that when it id the closed position it is locked and won’t slide open.
The same goes when it is in the open position.

Features:
Load capacity: 125 kg/pair* (at 800mm closed) please see below chart for slide ratings at different lengths
Closed Length: 800mm
Open Length: 1600mm
Allow 25mm extra length for the locking tab
Height: 53mm
Thickness: 19mm
304 Stainless Steel
Full Extension
Removable drawer tracks
Guided by: 2 ball cages
Side mount only

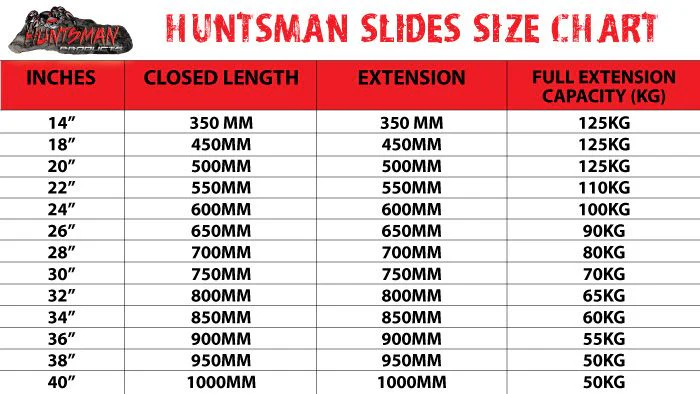

please see picture chart for slide ratings at different lengths
