Trailer Electro Hydraulic Ram Cylinder Tipper Kit. 1000mm Stroke. 6 Stage 6000Kg

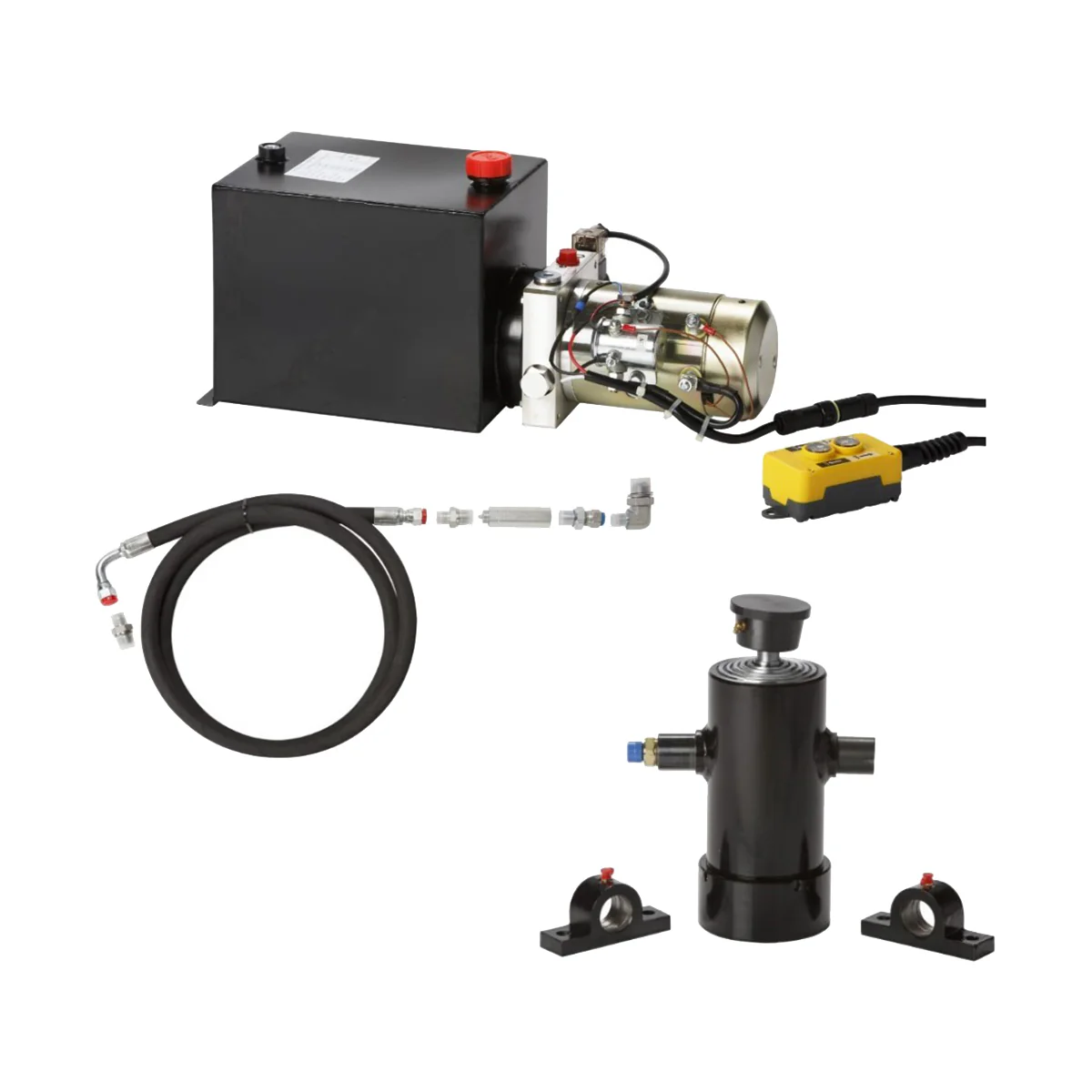

Trailer Electro Hydraulic Ram Tipper Kit
Victorian Hydraulics
Long Gold Kit. 1000mm Stroke


Standard Extras in The Gold Kits include
11 LPM flow control
motor thermal overload
SLV with manual override
hose burst valve

HPU 12V 2.5cc 10L SSH SLV MO TO RCA 11LPM
12V 1.5kW Motor c/w Thermal Overload
2.5cc Pump
10L Steel Square Horizontal Reservoir
Solenoid Lowering Valve c/w Manual Override
11 LPM Flow Control
3m Pendant Break Away

Cylinder Telescopic UB C Ball 2B 4ST 110D 800STR
6 Stage
1000mm Stroke

Diminishing Forces (in Tonne)1st Stage: 13.9
2nd Stage: 10.2
3rd Stage: 7.1
4th Stage: 4.5
5th Stage: 2.5
6th Stage: 1.1

Tipper Hose Kit Gold 2M
2 x Nipple 3/8” BSPPM x 9/16” JICM
Elbow Swivel 90° BSPPM x JICM ½” x 9/16”
Adaptor Swivel BSPPM x JICFS 3/8” x 9/16”
Hose Assembly 2m x 3/8” c/w Hose Ends 9/16” JICF
Hose Burst Valve 3/8”

6 Stage Ram
Overall Height: 346mm
Weight: 23Kg
Distance From Centre Of Mounting Trunion To Top Of Plate: 160mm

10 Litre Reservoir
Length: 260mm
Height: 244mm
Width: 198mm
Usable Volume: 8.5 Litre

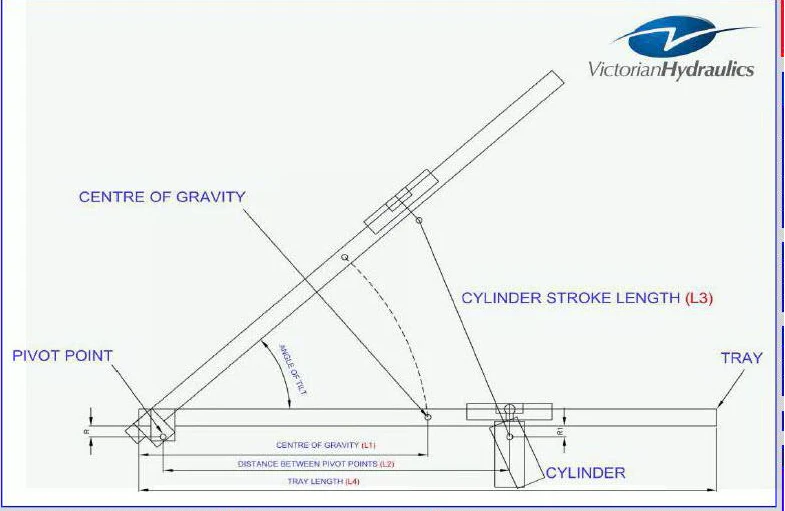

For assistance in working out the correct Tipper kit for the job please see the tipper calculation sheet in pictures and message us with the below specs of the build
Tray weight (empty):
Gross Tray Weight (Loaded):
Centre Of Gravity:
Distance Between Pivot Points:
Tray Length:
